Wave Packet Spreading

In the case where the group velocity is not constant, the phenomenon of wave packet spreading occurs.

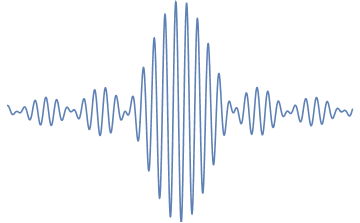

Let us now look at a wave packet in a medium with a dispersion relation ω = α k². The wave number spectrum A(k) was chosen to be rectangular for simplicity, centered around the wave number k₀, with width Δk. The packet moves with group velocity v_g = 2 α k₀, which is twice the phase velocity v_φ = α k₀. The time evolution is given by the expression ψ(z,t) = ∫₀^∞ A(k) cos(αk²t–kz) dk, which we can express using the special functions of Fresnel integrals. Here is the resulting packet:

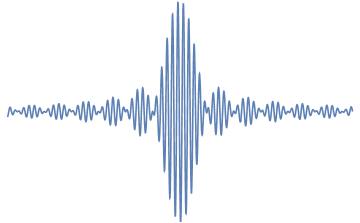

By performing a Galilean transformation we immobilize the packet:

And over a longer time horizon we observe its spreading:

And because the motion of the carrier wave is straining our eyes, we choose to render individual animation frames so that in one frame the carrier wave moves by exactly a multiple of its wavelength, i.e., time must be shifted by exactly Δt = λ₀ / v_φ = 2 π / (α k₀²) (and integer multiples of this time). The result:

Again over a longer time horizon:

And the packet has dispersed...

Source code: nb
